Lubi Pump

End-Suction Fire Pumps

Features

    • Installations of these pumps would ensure the safety of human life, buildings, and expensive equipment and plants. FLBS fire pumpset shall be used only where a positive suction is provided as specified in NFPA20.
    • Diesel engine as well as electric motor driven pump.
    • Back pull-out design which simplifies inspection and maintenance without disturbing pipe work.
    • The pump casing shall have material of construction of Cast Iron FG 260 (standard supply), CF8, CF8M, axial suction and radial discharge port, dynamically balanced impeller, steel shaft, stainless steel shaft sleeve.
    • The pump shaft sealing will be by either gland packing or mechanical shaft seal suitable for 16 bar or 25 bar pressure rating based on shut off pressure of the pump.
    • The pump shall have closed type impellers and bowl diffusers with material of construction stainless steel AISI 304 sheet metal, pump shaft shall be made of stainless steel AISI 316 material.
    • The pump shall have back pull out design so as to enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.

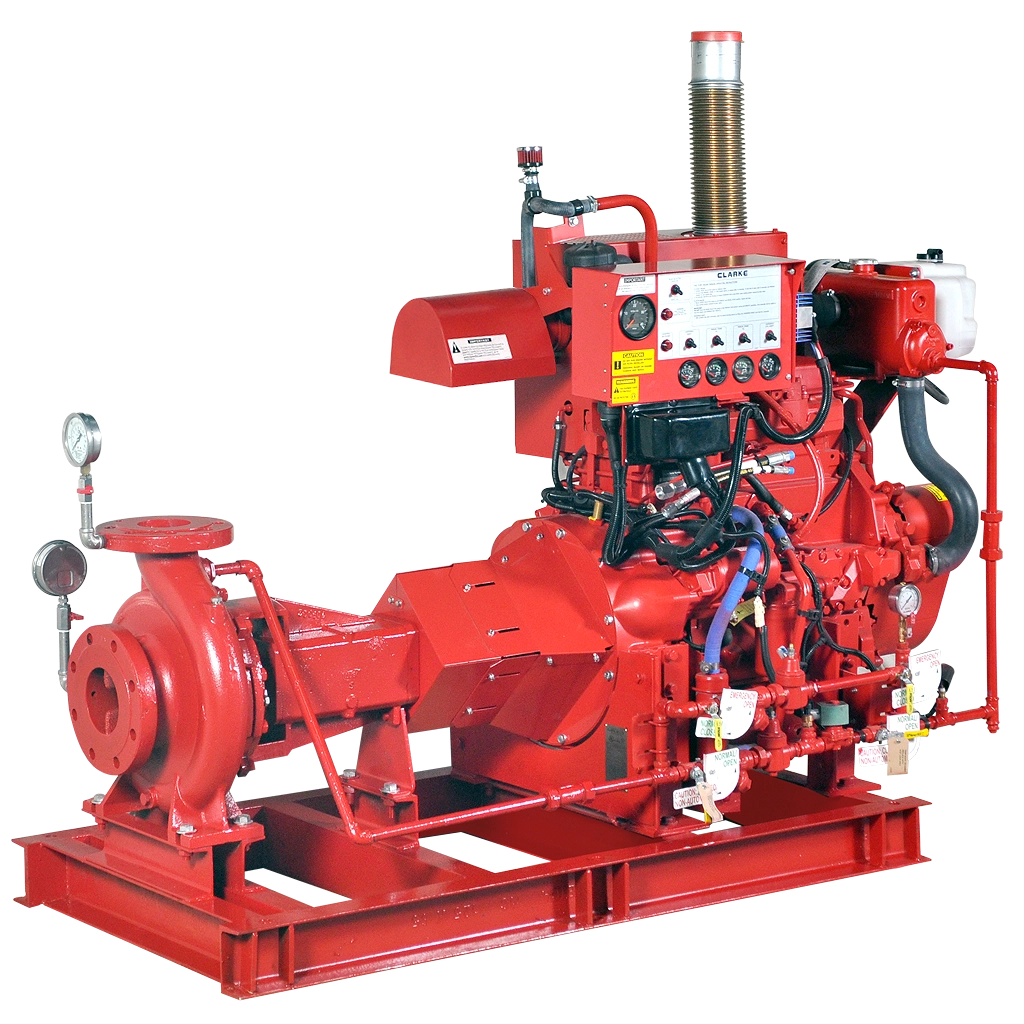

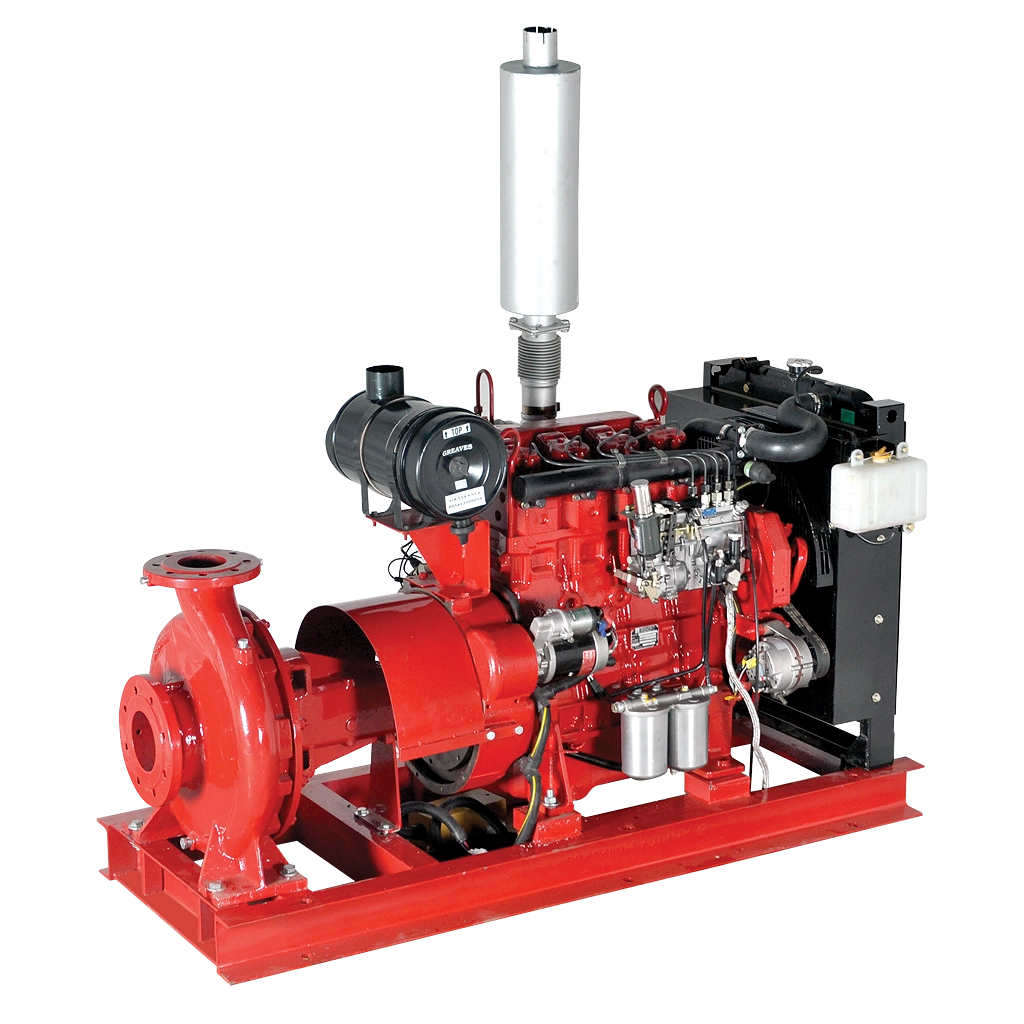

END SUCTION LONG COUPLED DIESEL DRIVEN FIRE PUMPS (LBSD SERIES)

Features

        • The pump shall be designed for clean and clear room temperature water to be used in firefighting applications.
        • The pump casing shall be of Cast Iron grade FG 260 as per IS 210 / ISO 186 with inline suction and discharge port.
        • The pump casing shall have threaded ports near suction and delivery flanges for installing suction and discharge pressure gauges. The pump shall also have a threaded drain port at the bottom of casing for draining the pump during maintenance.
        • The pumps shall have closed type impeller with Bronze LTB2 (standard supply) & Cast Iron FG 260 material.
        • The diesel engine shall be supplied with Radiator cooled type(standard supply) or Heat exchanger type.
        • The diesel engine shall be supplied with 12 volts DC or 24 volts DC battery and connection cables.
        • The pump accessories Suction and discharge pressure gauge & Casing relief valve shall be supplied on request.
        • The entire pump set including base plate and diesel engine are to be painted with RAL3002 shade.

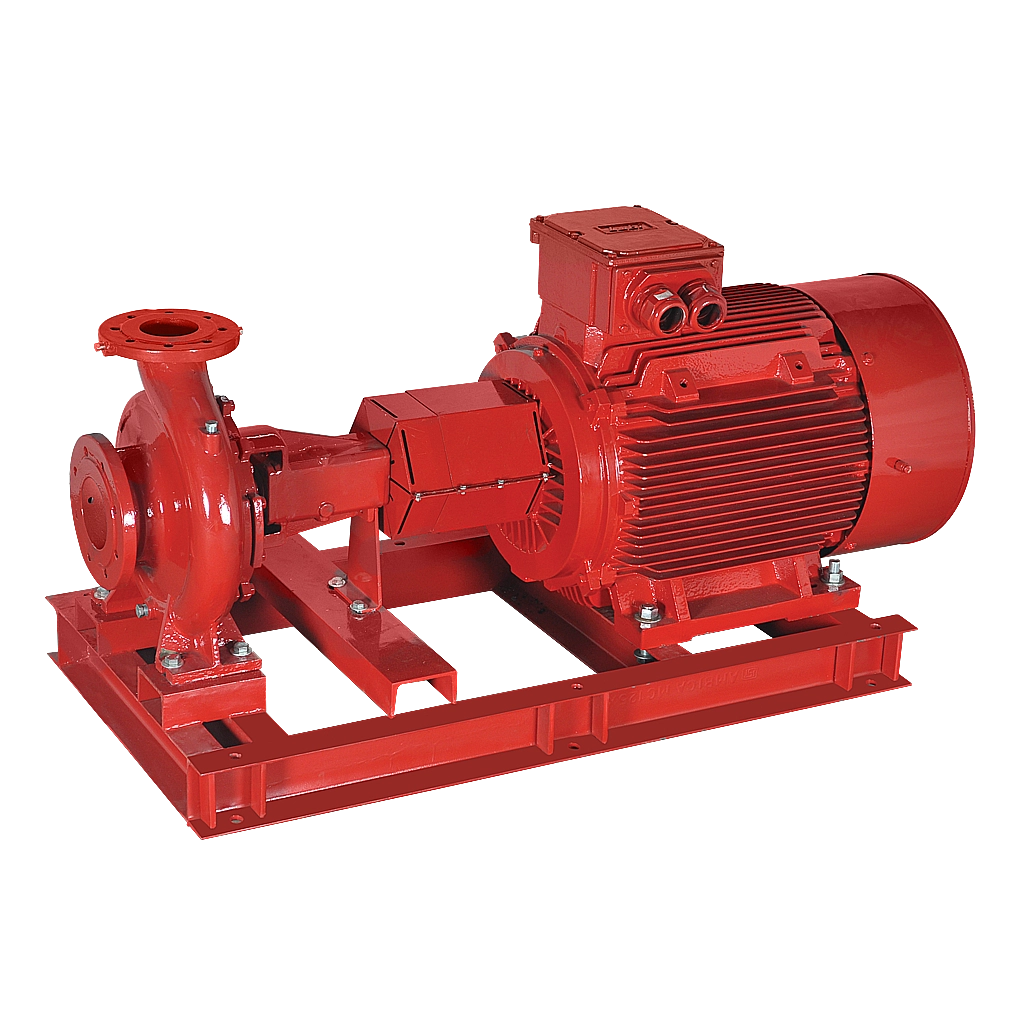

END SUCTION LONG COUPLED MOTOR DRIVEN FIRE PUMPS (LBSE SERIES)

Features

        • The pump shall be designed for clean and clear room temperature water to be used in firefighting applications.
        • The pump casing shall be of Cast Iron grade FG 260 as per IS 210 / ISO 186 with inline suction and discharge port.
        • The pump casing shall have threaded ports near suction and delivery flanges for installing suction and discharge pressure gauges. The pump shall also have a threaded drain port at the bottom of casing for draining the pump during maintenance.
        • The pumps shall have closed type impeller with Bronze LTB2 (standard supply) & Cast Iron FG 260 material.
        • The pump induction motor shall have F class insulation and S1 duty. TEFC motors shall be with IP55 protection.
        • The Motor shall be suitable for 3 phase, 415volts, 50 Hz power supply.
        • The pump accessories Suction and discharge pressure gauge & Casing relief valve shall be supplied on request.
        • The entire pump set including base plate and motor are to be painted RAL3002.
